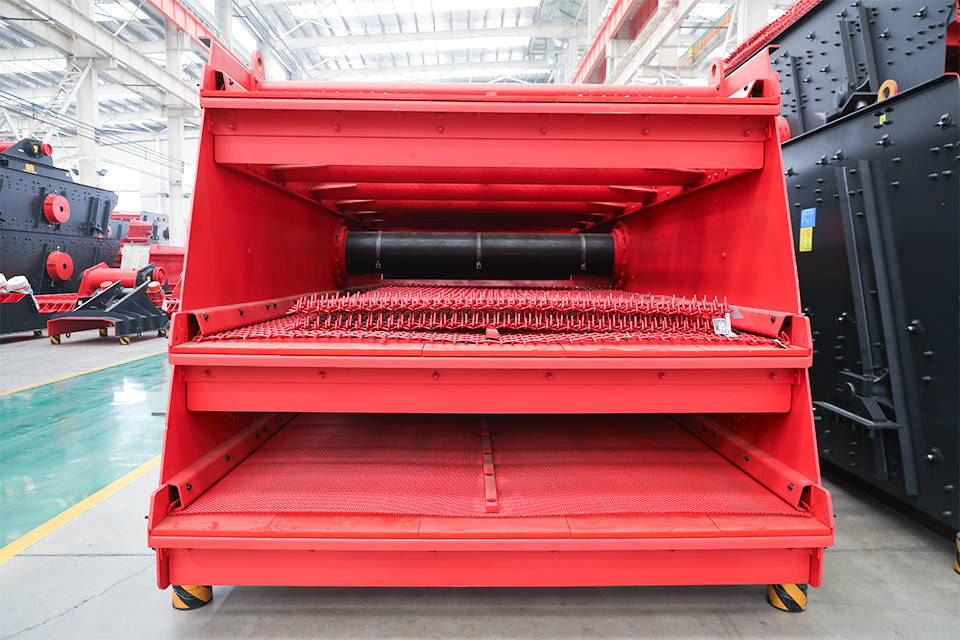

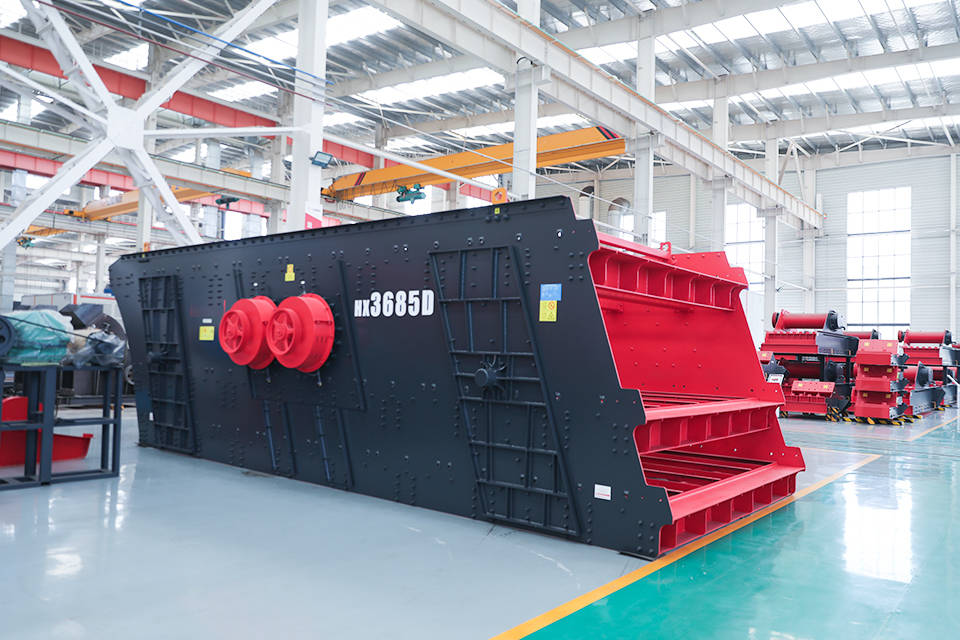

The HX-D heavy-duty double-shaft circular vibrating screen has a stronger structure than the HX series, so it can screen materials with larger particle sizes.
Pre-sale Free and Quick
Sales service
Long term after-sales guarantee
FTM Machinery is a high-quality HX(D) Series Heavy Vibating Screen manufacturer integrating R&D, production, sales, and service. The HX(D) Series Heavy Vibating Screen machines have the following outstanding advantages:
A selection range of 15° to 23° for screen surface inclination allows for better adaptation to specific site conditions
The shaker is an eccentric shaft + eccentric block structure, providing sufficient excitation force for transmission stability;
The thin oil-lubricated vibrator requires lubricating oil replacement every six months, making daily maintenance easy;
The key design feature includes a wear-resistant protective layer for quick replacement after wear, which extends the equipment's service life;
Belt wheel drive can quickly adjust the equipment speed according to the field conditions;
Special bearings for longer equipment life, ensuring smooth screen operations.
| Model | Sieve Layer | Sieve obliquity (°) |
Vibrating Frequency (r/min) |
Max.Feeding Size (mm) |
Processing Capacity (t/h) |
Power (kw) |
Mesh Size (mm) |
Double Amplitude (mm) |
Dimensions (LxWxH) (mm) |
| 2HX3075D | 2 | 15-20 | 600-1100 | 300 | 130-1300 | 22×2 | 1-140 | 5-13 | 8695×4080×2145 |
| 3HX3075D | 3 | 15-20 | 600-1100 | 300 | 140-1300 | 37×2 | 1-140 | 5-13 | 8940×4095×2885 |
| 2HX3085D | 2 | 15-20 | 600-1100 | 300 | 150-1300 | 37×2 | 1-140 | 5-13 | 9892×3909×2140 |
| 3HX3085D | 3 | 15-20 | 600-1100 | 300 | 160-1300 | 45×2 | 1-140 | 5-13 | 10132×4100×2880 |
| 2HX3685D | 2 | 15-20 | 600-1100 | 300 | 200-1500 | 37×2 | 1-140 | 5-13 | 9500×5420×2200 |
| 3HX3685D | 3 | 15-20 | 600-1100 | 300 | 220-1500 | 45×2 | 1-140 | 5-13 | 9780×5505×3050 |
