Feature

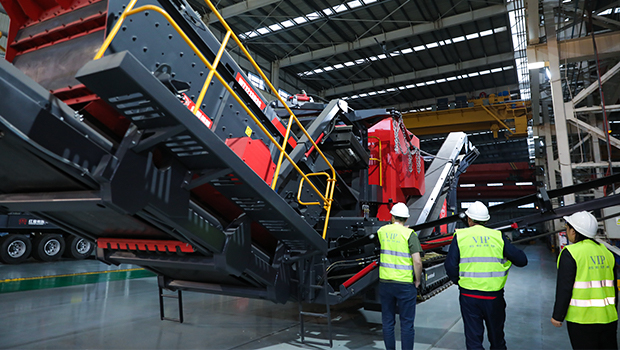

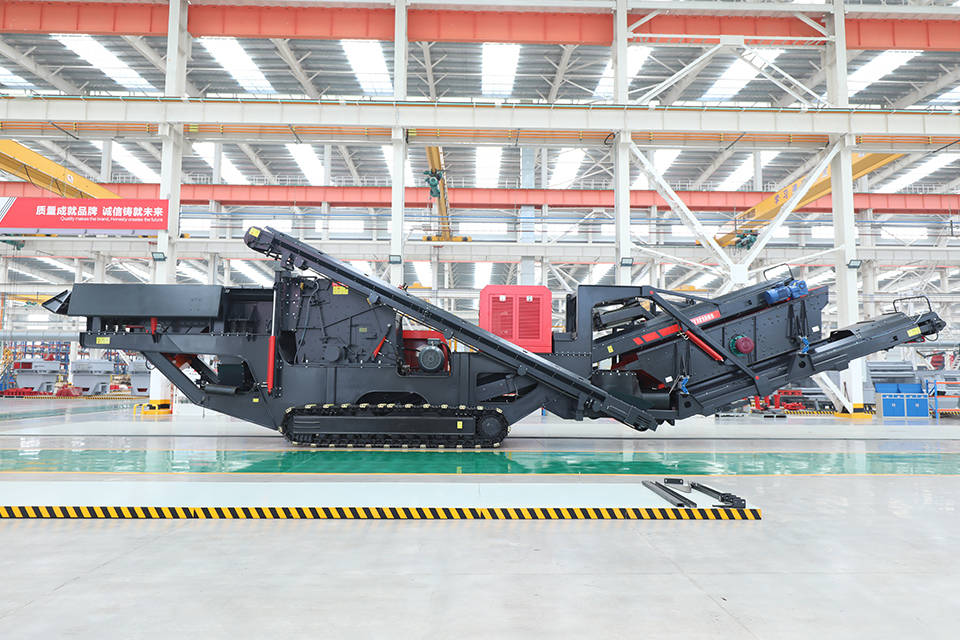

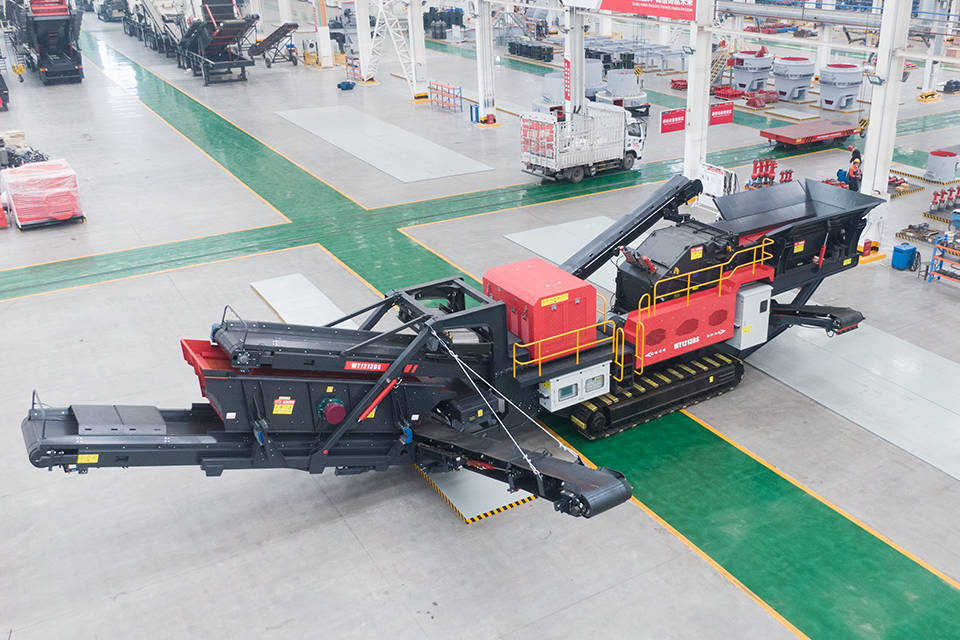

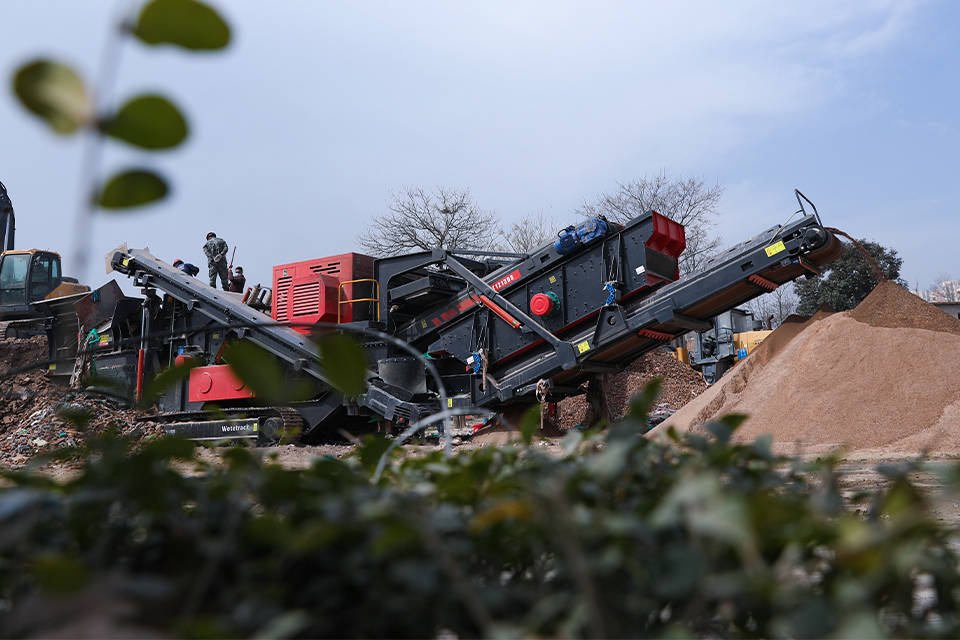

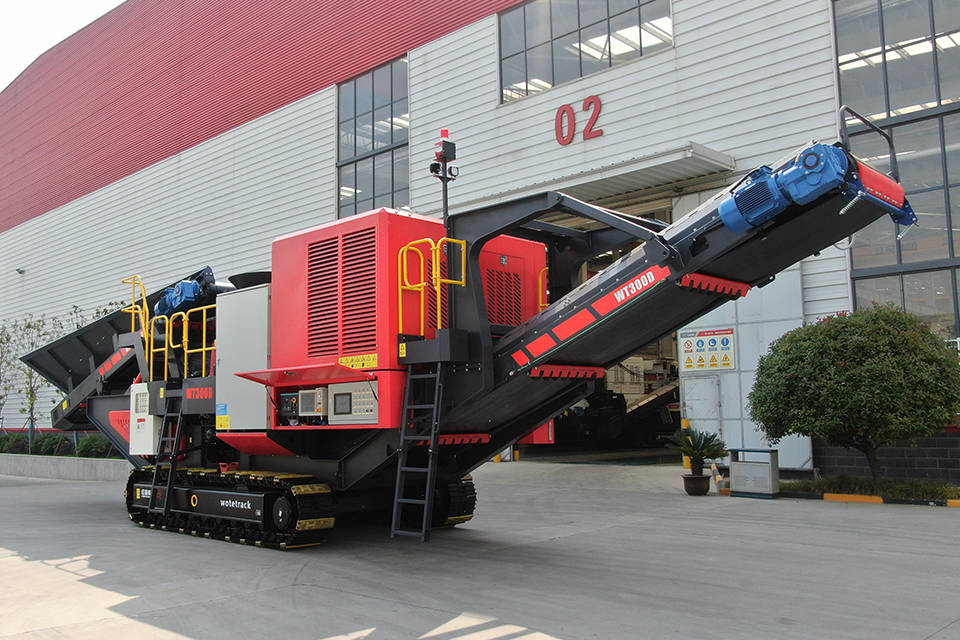

The crawler-type crushing station is a mobile crushing and screening equipment developed by our company by introducing the technology of well-known mining machinery companies and combining with the actual situation in China. The machine uses a hydraulic system to drive the crawler, so as to achieve smooth running, and can adapt to a variety of complex job site conditions. It is widely used in mineral mining, stone mining highways (railways) and bridges, urban construction waste disposal and many other fields.

The material can be evenly transported to the jaw crusher through the feeder. After the primary crushing, the material is sent to the impact crusher through the conveyor for secondary crushing. After crushing, it is output and sent to the vibrating screen. The materials that the conveyor output does not meet the requirements are returned to be crushed again. The whole processing process is a complete production line, which can realize the cyclic crushing of materials and meet the production requirements of customers.

Advantage

  • High power, safe and reliable

    Adopt high-power travel motor, strong horsepower, safe and reliable production and operation, simple operation and maintenance

  • Low noise, energy saving and environmental protection

    Using well-known brand motors to achieve excellent performance of the power system, with low noise and energy saving

  • Insurance device, reduce loss

    The generator set is designed to meet complex situations such as no power or power failure, and can operate normally, ensure continuous production and reduce losses

FTM New Design

  • 1. Feeding pre-screening system

    1. Feeding pre-screening system
  • 2. New type of crushing host

    2. New type of crushing host
  • 3. Side belt conveyor

    3. Side belt conveyor

Technical Specifications

Wotetrack Crawler Type Crushing And Screening Station

READ MORE
  • Crawler-type Cone Crushing Station
  • Crawler-type Jaw Crushing Station
  • Crawler-type Impact Crushing Station
Model WT160SC WT250SC WT300HPM WT400HPM
Dimensions of Transmission Devices Length 16800mm 19000mm 19000mm 19500mm
Width 3500mm 3600mm 3900mm 3900mm
Height 3700mm 3800mm 3800mm 3800mm
Weight 50t 60t 55t 65t
Belt Conveyor Hopper Volume 3m³ 3m³ 3m³ 3m³
Loading Height 2600m 2600m 2600m 2800m
Loading Width 1900mm 1900mm 1900mm 1900mm
Dimensions
(Width×Length)
1000×6300mm 1000×6300mm 1000×6300mm 1200×6500mm
Crusher Model SC160 SC250 HP300 HP400
Inlet Dimensions 75-360mm 75-450mm 60-200mm 68-280mm
Max.Feeding Size 360mm 450mm 200mm 280mm
Min. Discharging Size 8-25mm 8-35mm 8-45mm 8-51mm
Main Belt Conveyor Dimensions
(Width×Length)
1000×9000mm 1000×10000mm 1000×10000mm 1000×11000mm
Dumping Height 3100mm 3490mm 3490mm 3690mm
Secondary Screen Dumping Height 4200mm 4200mm 4400mm 4400mm
Model HX1536 HX1536 HX1536 HX1536
Sieve Dimensions 1500×3600mm 1500×3600mm 1500×3600mm 1500×3600mm
Belt Conveyors at the Bottom Dimensions
(Width×Length)
1000×5600mm 1000×5600mm 1000×5600mm 1000×6500mm
Dumping Height 3020mm 3020mm 3020mm 3300mm
Belt Conveyors to the Sieve Dimensions
(Width×Length)
650×2100mm 650×2100mm 650×2100mm 650×2100mm
Dumping Height 1370mm 1370mm 1370mm 1370mm
Belt Conveyors for Discharging Material Dimensions
(Width×Length)
650×10000mm 650×10000mm 650×11000mm 650×11000mm
Dumping Height 4200mm 4200mm 4400mm 4400mm
Diesel Engine Power 96kw 132kw 106kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 207.12kw 297.12kw 267.12kw 362.12kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
Model WT96 WT106 WT120
Dimensions of Transmission Devices Length 14200mm 14900mm 15200mm
Width 2900mm 3000mm 3200mm
Height 3470mm 3600mm 3700mm
Weight 38t 50t 65t
Feeder Hopper Volume 5m³ 5m³ 6m³
Loading Height 3900mm 4100mm 4300mm
FeederModel GZDT3895 GZDT1145 GZDT1245
Unearthed Belt Conveyors Dimensions
(Width×Length)
800×9000mm 1000×10000mm 1200×12000mm
Dumping Height 3100mm 3200mm 3400mm
Crusher Model CJ96 CJ106 CJ120
Inlet Dimensions 930×580mm 1060×700mm 1200×870mm
Max.Feeding Size 480mm 560mm 700mm
Main Belt Conveyor Dimensions
(Width×Length)
800×9000mm 1000×10000mm 1200×12000mm
Dumping Height 3100mm 3200mm 3400mm
Iron Remover Model RCYQ-8 RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 106kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 112.9kw 141.4kw 196.2kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
Model WT110 WT110S WT1213 WT1213S WT1315
Dimensions of Transmission Devices Length 14000mm 16000mm 15500mm 19000mm 17000mm
Width 3000mm 3200mm 3200mm 3600mm 3200mm
Height 3600mm 3600mm 3800mm 3800mm 3800mm
Weight 40t 45t 53t 60t 65t
Feeder Hopper Volume 3m³ 3m³ 5m³ 5m³ 5m³
Loading Height 3900mm 4000mm 3900mm 4100mm 4000mm
Primary Screen Power 5.2kw 5.2kw 6.12kw 6.12kw 6.12kw
Sieve Dimensions 1040×924mm 1040×924mm 1140×924mm 1140×924mm 1240×930mm
Crusher Model CI1110M CI1110M CI1213M CI1213M CI1315M
Inlet Dimensions 1020×860mm 1020×860mm 1320×900mm 1320×900mm 1540×900mm
Max.Feeding Size 400mm 400mm 500mm 500mm 600mm
The Feeder at the Bottom Hopper Volume 0.8m³ 0.8m³ 1m³ 1m³ 1.5m³
Power 5.2kw 5.2kw 5.2kw 5.2kw 6.12kw
Unearthed Belt Conveyors Dimensions
(Width×Length)
650×3500mm 650×3500mm 650×3500mm 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm 2200mm 2200mm 2400mm
Main Belt Conveyor Dimensions
(Width×Length)
1000×8500mm 1000×8500mm 1000×9900mm 1000×9900mm 1200×11000mm
Dumping Height 3300mm 3300mm 3500mm 3500mm 3800mm
Secondary Screen Power 6.12kw 6.12kw
Sieve Dimensions 1500×3600 1500×4200
Belt Conveyors at the Bottom Dimensions
(Width×Length)
1000×5800mm 1000×6200mm
Dumping Height 2900mm 3000mm
Transferring Belt Conveyor Dimensions
(Width×Length)
650×2500mm 650×2800mm
Dumping Height 1400mm 1400mm
Belt Conveyors for Discharging Material Dimensions
(Width×Length)
500×8000mm 500×9200mm
Dumping Height 4200mm 4500mm
Iron Remover Model RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 106kw 106kw 132kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 253kw 274kw 304kw 324.4kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
