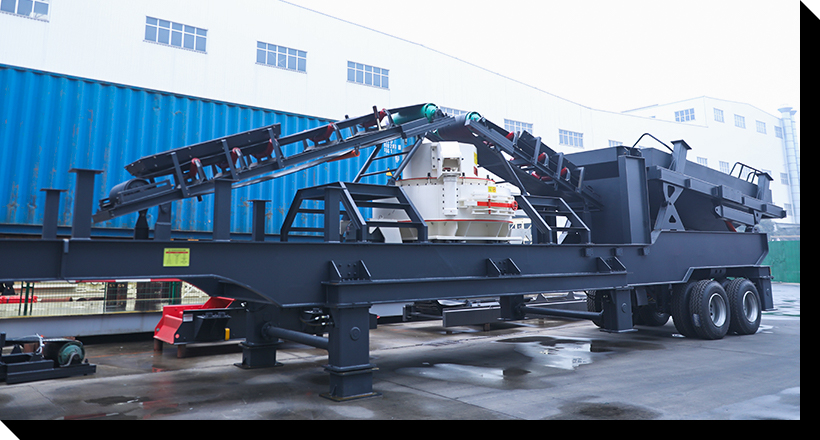

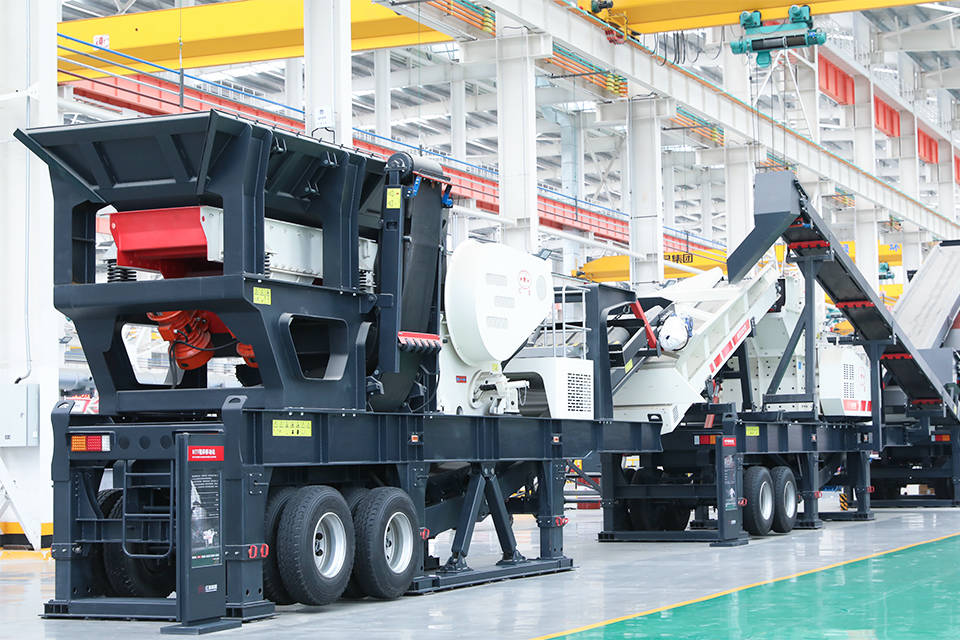

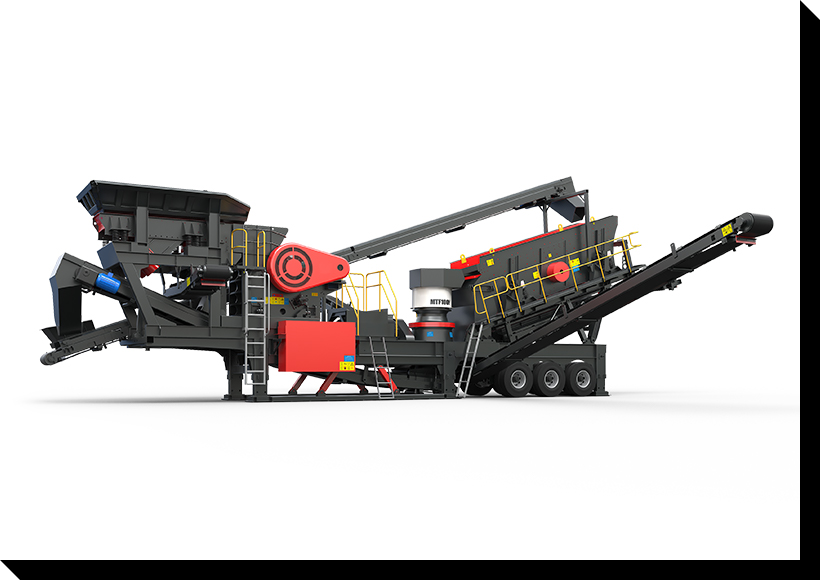

MTF Wheel Type Mobile Crushing And Screening Station

Fill out the form below to leave a message, and get our latest special offer instantly

Message

You e-mail address(Required)

Your Phone or Whatsapp

Feature

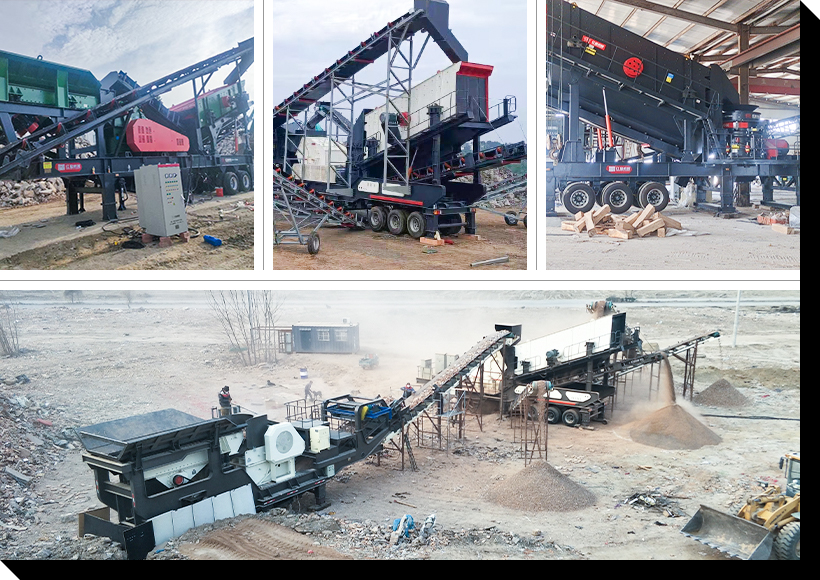

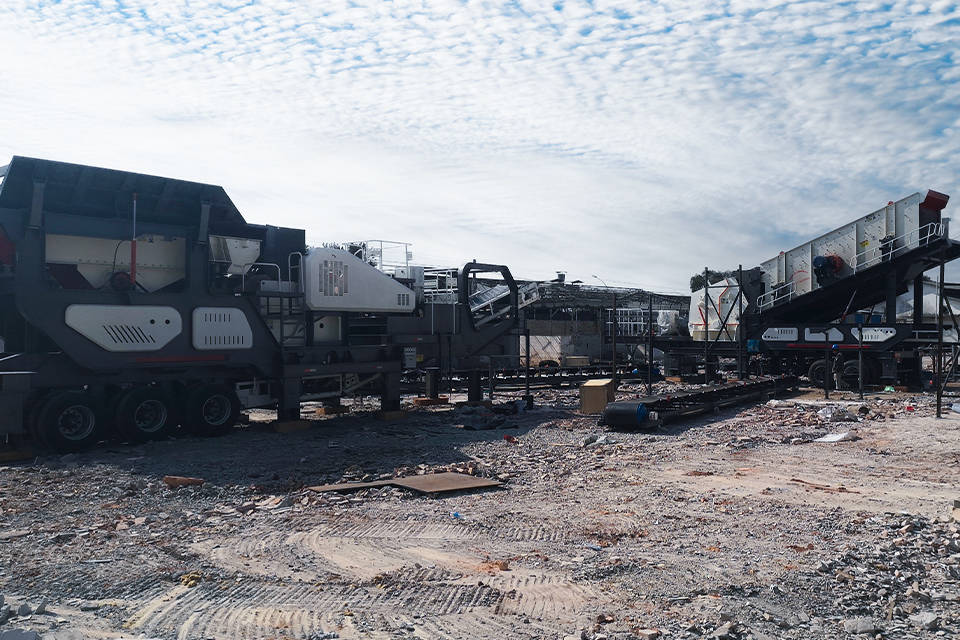

The MTF series of wheel-type mobile production lines fully cover the application fields of hard rock, soft rock, and construction waste with a processing capacity of 100-300 tons per hour.

The overall appearance of the mobile station is beautiful, the workmanship is exquisite, the host is equipped with the latest technology, the performance is stable and reliable, and the output is high. A large number of belt conveyors which are assembled on the trailer eliminate the need for on-site transfer and external belt conveyors, and the work site is tidy and organized; Each mobile station is equipped with a crawler plate device to ensure that the equipment arrives at the site quickly for installation and commissioning, and reduces the concrete foundation preparation time.

The main equipment on the production line are all high-performance machines produced with the latest industry technology, with high efficiency, high output, and stable and reliable operation.

The feeder adopts a vibrating motor to provide excitation force, and accurately controls the feeding amount through a frequency converter to maximize the production capacity of the equipment.

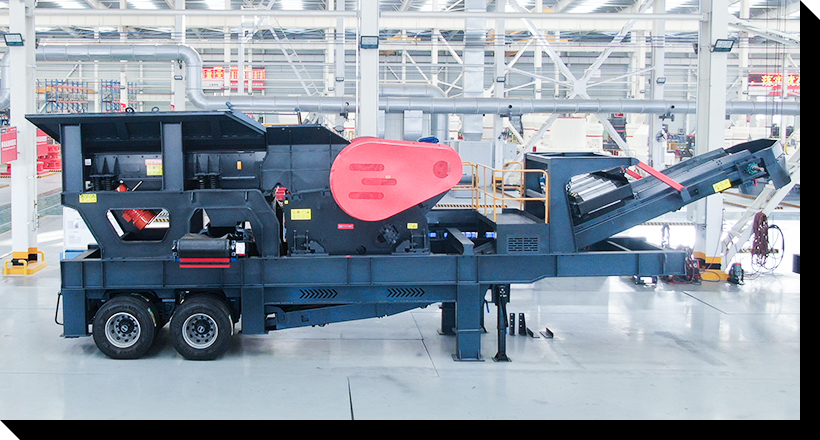

The jaw crusher adopts a wedge to adjust the discharge opening, which is easy to operate. The integral motor bracket, the belt has good force and long life.

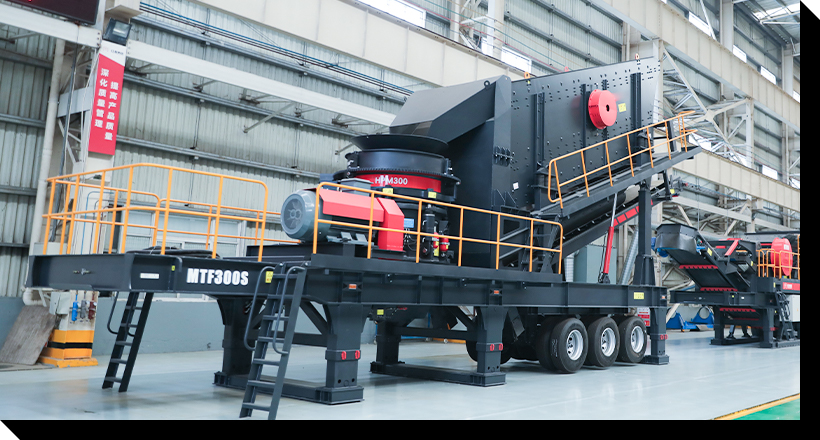

The cone crusher adopts an automatic control system, which is easy to operate, stable, reliable, high in efficiency and good in particle shape.

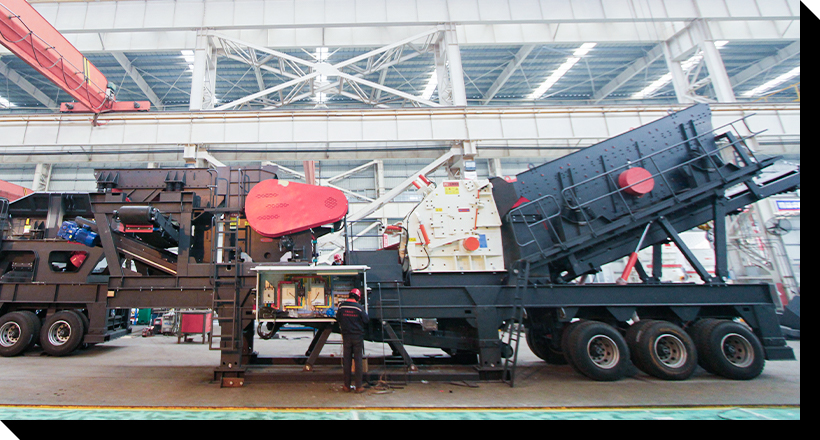

The impact crusher adopts the refined design of the rotor and cavity, the speed and power are reasonably matched to meet the different application options of coarse crushing, medium and fine crushing and material recovery.

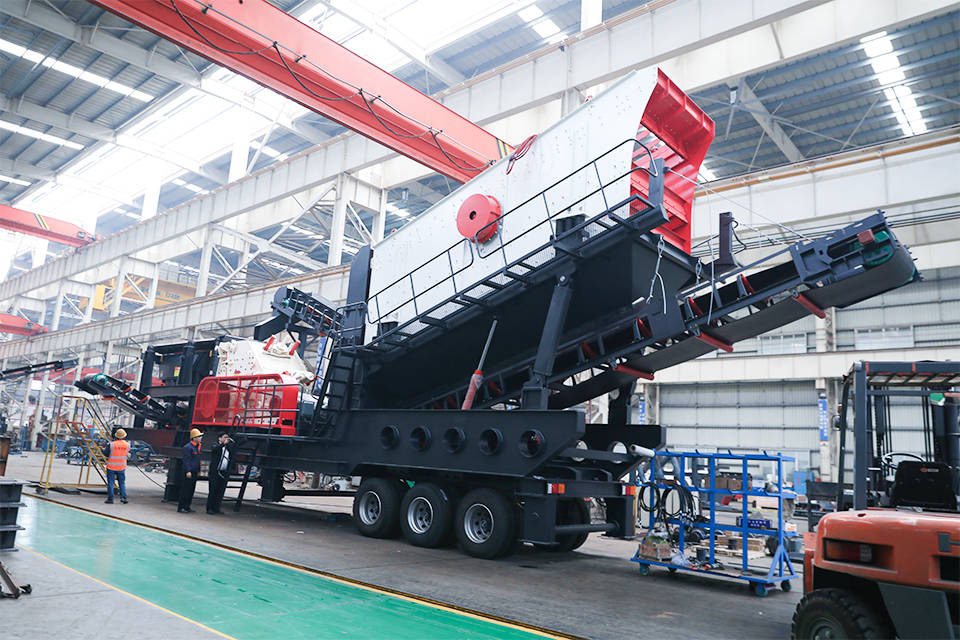

The vibrating screen adopts thin oil lubrication, and the oil change interval is as long as 1200 hours, thelubrication effect is good, and the equipment downtime is short.

Advantage

  • Modular design

    The MTF series mobile production line adopts modular and universal design, with high structural strength and strong versatility.

  • Precisely control the feeding amount

    The feeder adopts frequency conversion control, and the feeding amount of the feeder can be adjusted according to different conditions to give full play to the production capacity of the production line.

  • High-performance main machine

    The main equipment on the production line are all high-performance machines produced with the latest industry technology, with high efficiency, high output, few failures, convenient operation and maintenance.

  • Humanized maintenance platform

    The front and back connection design of the maintenance platform is convenient for the operator to observe the equipment operation in time. Inclined up and down escalators, wider pedals, safer and more convenient than upright ladders.

FTM New Design

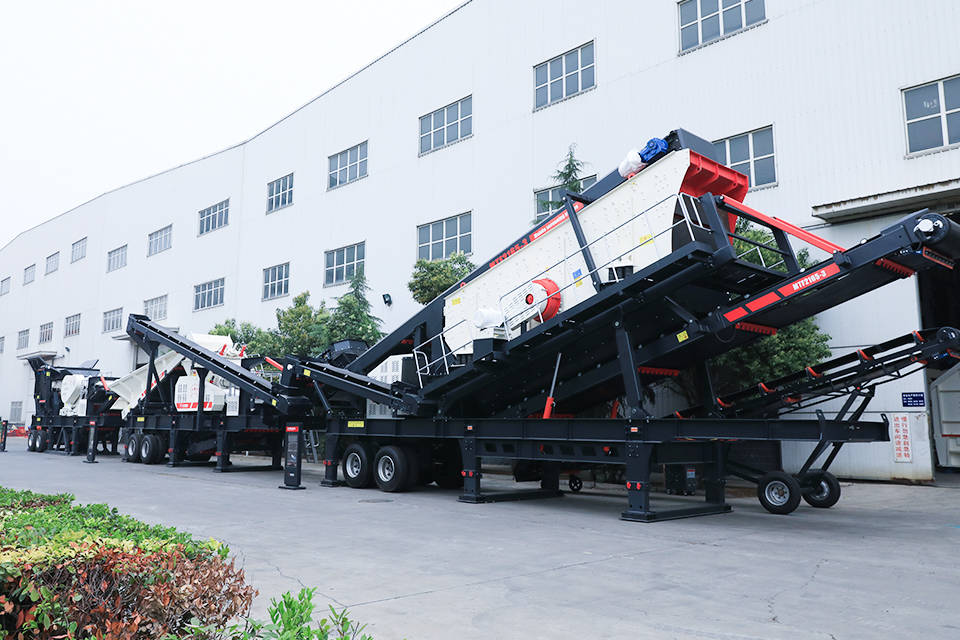

  • Belt conveyor assembled on the trailer


	Belt conveyor assembled on the trailer
  • Electronic control system assembled on the trailer


	Electronic control system assembled on the trailer

Technical Specifications

MTF Wheel Type Mobile Crushing And Screening Station

READ MORE
  • Wheeled Mobile Jaw Crushing Station
  • Wheeled Mobile Impact Crushing Station
Model FTM938HD86 FTM1149HD98 FTM1349HD110 FTM1349HD125
Transportation lenght(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Lenght(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dualaxial Triaxial Triaxial Triaxial
Jaw Crusher HD86 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge opening range 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Feeder ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5m B1000×9.5m B1000×11m B1200×11m
Side-opening Belt conveyor(optional) B500×3m B650×3.5m B650×4m B650×4m
Gensrt(optional) 200KW 250KW 270KW 400KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
Model FTM938F1210 FTM938F1214 FTM1149F1315 FTM938F1110 FTM1349F1315
Transportation length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Impact crusher PE-1210 PE-1214 PF-1315 HD1110 HD1315
Maximum Feeding Size(mm) 350 350 500 400 700
Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(optional) B500×3.2m B500×3.2m B650×4m B650×4m B650×4m
Gensrt(optional) 320KW 320KW 400KW 320KW 440KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12
